WorksheetsPhysics Quiz
Total questions: 33
Worksheet time: 17mins
A 2000 kg truck and a 500 kg car are racing. The same amount of force is applied to each of them. Which statement below best describes the acceleration of the vehicles?
The truck will accelerate twice as fast.
The car will accelerate four times as fast.
The car will accelerate twice as fast.
The truck will accelerate four times as fast.
It takes a 7 N force to cause a 0.028 kg object to begin moving. What is the acceleration of the object as it begins to move?
250 m/s²
200 m/s²
150 m/s²
100 m/s²
A rocket booster initially applies 10,000 N of force to a 1,000.0 kg rocket causing it to accelerate at 10.0 m/s². Ten minutes later, the rocket booster is released and it falls through the atmosphere. The mass of the rocket is now 760.0 kg, and its acceleration is 7.0 m/s². How much force is now being applied to the rocket? Record your answer and fill in the bubbles on your answer document. Be sure to use the correct place value.
5320 N
7000 N
7600 N
5000 N
Using F=ma, explain why a train is more difficult to start moving and more difficult to bring to a stop than an average sized car.
A train has more mass, requiring more force to change its motion.
A train has less mass, requiring less force to change its motion.
A train has the same mass as a car, so the force required is the same.
A train's mass does not affect the force required to change its motion.
Based on the observations and the calculations made by the students, what is the estimated force applied to the skateboarder if the acceleration is 0.90 m/s²? Record your answer and fill in the bubbles on your answer document. Be sure to use the correct place value.
36
45
50
60
The masses of four bowling balls, and the net forces acting on them as they approach the pins at the end of the lane are recorded in the table below. Which bowling ball has the greatest acceleration as it approaches the pins at the end of the lane?
The green ball
The red ball
The pink ball
The purple ball
A roller coaster containing three cars is accelerating at 10 m/s² before it comes to an abrupt stop at the end of the ride. The mass of one car is 300 kg. How much force was exerted on the roller coaster to bring it to a stop?
30 N
900 N
3000 N
9000 N
During a tug-of-war competition, neither team is able to gain an advantage. Which of the following explains the forces in this situation?
The forces are balanced.
The forces are overcome by air friction.
The mass of the rope cancels the forces being exerted on it.
The forces are unbalanced.
A rocket is traveling from Earth to Mars at 10,000 m/s. If no outside force is applied to it, what will happen to its speed over the course of the trip?
Speed up
Slow down
Stay constant
Changes depending on mass
Observe the illustration above. If the student fell off of the skateboard in the direction indicated, which arrow indicates the most likely direction the skateboard would travel based on the law of action-reaction?
1
2
3
4
A force that will work against motion in every situation is —
the normal force
weight
gravity
friction
You are riding in a vehicle with a coffee cup on the dashboard while traveling 30 km/h. The vehicle makes a sudden stop to avoid hitting the car that has stopped in front of it. Which illustration best demonstrates what would happen to the coffee cup?
Go forward
Go backward
Stay stationary
Go straight up

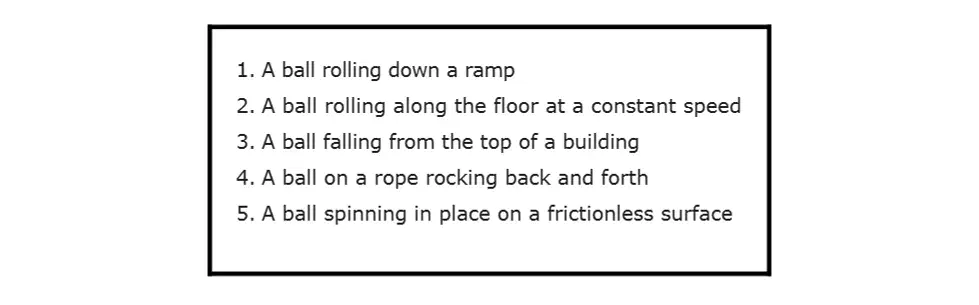

Which of the following scenarios where a ball is in motion describes balanced forces?
2 and 5
2, 4, and 5
1, 2, and 5
1, 3, and 4
Students roll a 6.5 g toy car down a 75 cm ramp covered with different textures. The students conduct three trials for each texture. The students use the table below to record their data. Which of the following questions is most likely being investigated based on the description?
How long does it take for a toy car to travel down a ramp?
How does the length of a ramp affect the amount of time it takes for a toy car to travel down a ramp?
How does the texture of a surface affect the amount of frictional force applied to an object traveling across the surface?
How does the mass of a car affect the amount of time it takes a toy car to travel down a ramp?
What are the action and reaction forces of an ice skater performing a jump?
The skater pushes down on the ice, and the ice pushes up on the skater.
The skater pulls up on the ice, and the ice pulls down on the skater.
The skater pushes forward on the ice, and the ice pushes backward on the skater.
The skater pulls backward on the ice, and the ice pulls forward on the skater.
A group of four students is participating in a marble race. Each marble has a different mass, and the same force is applied to each marble. Which marble will experience the least acceleration?
Marble A
Marble B
Marble C
Marble D
A 62 kg wake boarder is being pulled by a boat with a force of 124 N. What is the acceleration of the wake boarder?
0.5 m/s²
5 m/s²
2 m/s²
0.2 m/s²
Two vehicles with different masses are traveling 104 kilometers per hour on a highway. As each vehicle approached a traffic light, it turned red. Each car applied their brakes at the same time and applied the same amount of force to stop. Which statement below best describes what happened?
The vehicle with the larger mass took longer to stop than the vehicle with the smaller mass.
The vehicle with the smaller mass took longer to stop than the vehicle with the larger mass.
The vehicle with the smaller mass has more inertia than the vehicle with the larger mass.
The vehicle with the larger mass took less force to stop than the vehicle with the smaller mass.
How many newtons of force are needed to accelerate a 1,875 kg object at a rate of 1.5 m/s²?
2,812.5 N
1,250 N
3,000 N
2,500 N
Which of the following scenarios best describes Newton’s law of action-reaction?
A bottle of soda sitting in the console of a vehicle appears to move left as the vehicle makes a sharp right turn.
A rocket moves upward as the engine pushes downward against exhaust gases and the exhaust gases push upward against the engine.
A train traveling 88 kilometers per hour takes approximately one mile to come to a complete stop.
An ice skater sharpens the blades of their skates to lessen the effect of friction.
A bakery delivery van is transporting a wedding cake across town to the location of a wedding reception. Which of Newton’s laws best explains why the driver of the van would want to be extra careful when making turns and stops along the route?
The law of action-reaction
The law of force and acceleration
The law of inertia
The law of conservation of mass
A driver is transporting a watermelon in the back seat of a car traveling at a speed of 87 km per hour. The watermelon has a mass of approximately 3.5 kg. A deer standing in the roadway causes the driver to come to a sudden stop. The watermelon crashes into the back of the front seat with great force. Which of Newton’s laws best explains why it is safer to wear your seatbelt and to tie down or buckle in any objects being transported in a vehicle?
The law of force and acceleration
The law of conservation of mass
The law of action-reaction
The law of inertia
According to the information and diagram above, how much acceleration is affecting the 2 kg mass?
9.9 N
19.8 m/s²
4.95 m/s²
19.8 N
Refer to the information and diagram shown above. If the object is NOT moving, where is the acceleration coming from to cause the force on the mass?
Friction
Spin of Earth
Gravity
Movement around Sun
A magician performs a trick where the tablecloth is quickly removed from the table, while all of the items on the table stay in the same place. Which of Newton’s laws best describes the behavior of the tablecloth and the glass on the table?
Tablecloth: Law of force and acceleration; Glass: Law of inertia
Tablecloth: Law of inertia; Glass: Law of force and acceleration
Tablecloth: Law of force and acceleration; Glass: Law of action-reaction
Tablecloth: Law of action-reaction; Glass: Law of force and acceleration
A magician performs a trick where the tablecloth is quickly removed from the table, while all of the items on the table stay in the same place. Which statement below accurately describes the reason that the items remain on the table?
The mass of the items on the table is so small that no force was applied when the tablecloth was pulled out from under the items.
The direction of the force applied to the tablecloth was down towards the ground, so the items accelerated down towards the table until they rested on the table.
The action force of the moving tablecloth caused a reaction force from the items on the table, so the forces in the items remained balanced and the items remained at rest on the table.
The moving tablecloth did not apply much force to the items on the table, so the forces on the items remained mostly balanced allowing the items to remain at rest on the table.
The diagram below models two tectonic plates sliding past one another. This type of plate movement is common with oceanic plates. As the plates push against one another, pressure builds up in the form of tension. All of the tension is released when the plates begin to move. According to the information and diagram above, which force is responsible for the plate movement?
Balanced
Gravitational
Frictional
Unbalanced
During an investigation, a student is given a hard-boiled egg and a raw egg of equal mass. The student is asked to spin each egg on its side with the same force and then stop the eggs with one finger. After repeated trials, the student observes that the raw egg continues to rotate for a few seconds after the hard-boiled egg has stopped rotating. Which of the following statements best explains why the raw egg continues to rotate longer than the hard-boiled egg?
The raw egg’s liquid center has more acceleration than the boiled egg’s solid center.
The raw egg’s liquid center has more mass than the boiled egg’s solid center.
The raw egg’s liquid center has more force than the boiled egg’s solid center.
The raw egg’s liquid center continues to be in motion, and the boiled egg’s solid center does not.
The diagram below shows the different forces acting on a toy rocket. The total mass of the rocket is 0.5 kg. Based on the information, what is the acceleration of the rocket?
6 m/s²
30 m/s²
14 m/s²
46 m/s²
Four tractor trailers are entering a highway. Their masses and net force are recorded below. Which tractor trailer will have the greatest acceleration when entering the highway?
Tractor Trailer 1 because the mass and force are less compared to other tractor trailers
Tractor Trailer 2 because the mass and force are greater compared to other tractor trailers
Tractor Trailer 3 because the mass is greater and the force is less compared to other tractor trailers
Tractor Trailer 4 because the mass is less and the force is greater compared to other tractor trailers
Students designed and built model cars and then raced down a ramp. They recorded the mass and acceleration of each car in the table below. Which of the four cars had the least net force applied to it when it was launched down the ramp?
1
2
3
4
Students examine a map that shows the movement of the two tectonic plates. Each student writes a description of the tectonic activity and why they think it is occurring. Which explanation best describes the impact of Newton’s Laws on the movement of these plates?
The North American Plate is subducting underneath the Eurasian Plate because equal and opposite forces are acting on them.
The forces acting on both plates cause them to diverge until they are acted upon by another force.
The Eurasian Plate and the North American Plate are converging because the forces acting on them are balanced.
Balanced forces are acting the Eurasian Plate and the North American Plate causing them to diverge.

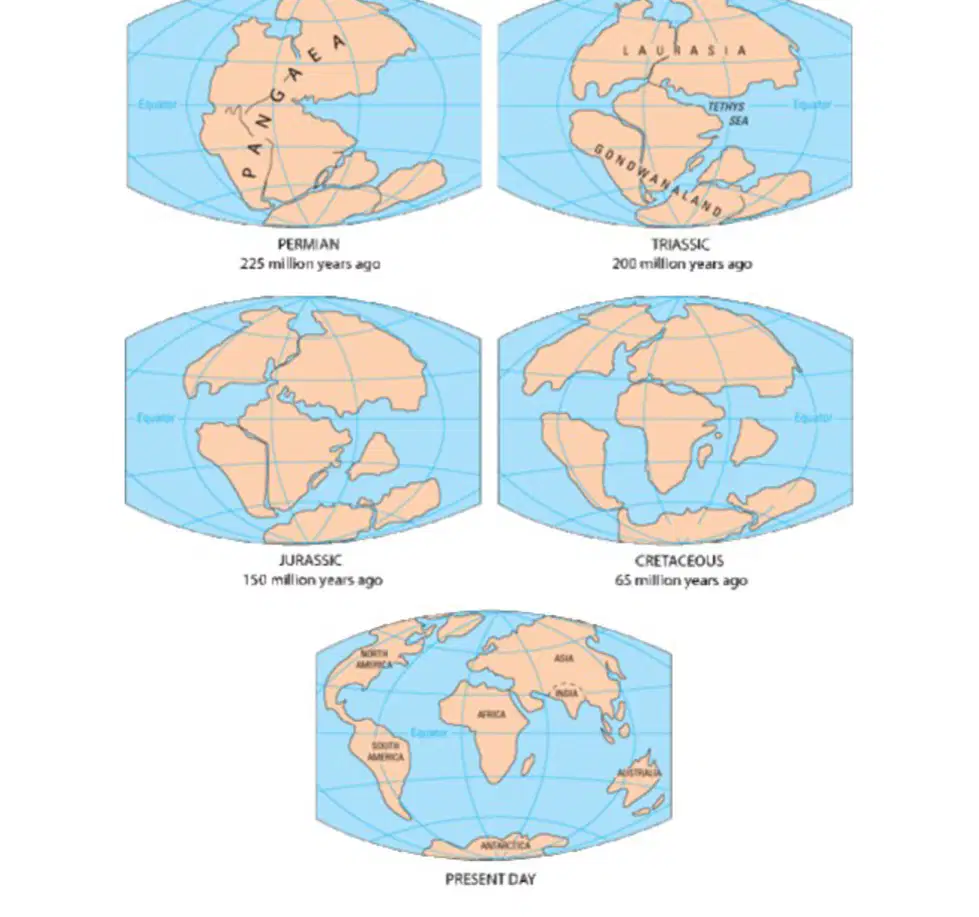

Which of the following best explains why Pangea broke apart into modern day continents?
Earthquakes and volcanoes formed between the continents.
Changing climate caused ice to form between the plates.
Balanced forces caused a change in the motion of the plates.
The plates underlying the continents were already in motion.
