WorksheetsUnit 264 - Power Engineering Quiz
Total questions: 86
Worksheet time: 43mins
What does PILCSTA stand for?
Paper Insulated Lead Covered Steel Tape Armoured
Plastic Insulated Lead Covered Steel Tape Armoured
Paper Insulated Lead Covered Steel Tube Armoured
Paper Insulated Lead Coated Steel Tape Armoured
Which type of cable is described as "High-Pressure Fluid Filled"?
HPFF
HPCF
SCFF
XLPE
What is the maximum voltage handling capacity of high tension cables?
11 kV
33 kV
66 kV
1000 V
What is the thickness of insulation for Extra Super Voltage cables?
23 mm
1.5 mm
4-5 mm
16 mm
What does HPFF stand for in the context of underground transmission systems?
High Pressure Fluid Filled
High Power Fluid Flow
High Pressure Fuel Flow
High Power Fuel Filled
What material are the conductors in HPFF systems typically made of?
Copper or aluminum
Steel or iron
Plastic or rubber
Lead or zinc
What is the purpose of the dielectric oil in HPFF systems?
Acts as an insulator and coolant
Provides electrical power
Lubricates the conductors
Prevents corrosion
At what pressure is the dielectric oil maintained in HPFF systems?
200 psi
100 psi
300 psi
400 psi
What is a potential issue with HPFF underground transmissions?
Maintenance and possible soil/groundwater contamination from oil leaking
Excessive noise pollution
High energy consumption
Frequent electrical outages
What does HPGF stand for in the context of cables?
High-Pressure Gas-Filled
High-Performance Gas-Filled
High-Pressure Gas-Free
High-Performance Gas-Free
What type of gas is used in HPFF cables to insulate conductors?
Pressurized nitrogen gas
Pressurized oxygen gas
Pressurized helium gas
Pressurized carbon dioxide gas
What is a negative of thicker insulation in HPFF cables?
Reduces the amount of current the line can safely carry
Increases the amount of current the line can safely carry
Reduces the weight of the cable
Increases the flexibility of the cable
Which gas is sometimes used in HV cables for its properties?
Sulphur Hexafluoride (SF6)
Carbon Dioxide (CO2)
Nitrogen (N2)
Oxygen (O2)
Which of the following is NOT a property of Sulphur Hexafluoride (SF6)?
It is flammable
It is non-toxic
It is highly stable
It is non-flammable

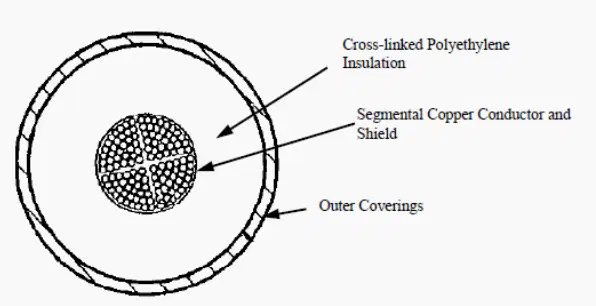

What does XLPE stand for in the context of solid cables?
Cross-linked Polyethylene
Extra Low Power Efficiency
Cross-layered Polyethylene
Extended Line Power Efficiency
What is a characteristic of solid cables compared to other types?
More maintenance required
Less maintenance required
Easier to detect insulation failures
Always housed together in a pipe
How many sets of cables are used in 345kV XLPE transmission lines?
1 set of 3 cables
2 sets of 3 cables
3 sets of 2 cables
4 sets of 1 cable
What is one advantage of using 'double-sets' of cables in underground transmission?
Increases downtime
Reduces downtime
Increases maintenance time
Decreases construction footprint
What is one method of installing underground cables where conductors are buried in a trench in the ground?
Direct Buried
Overhead Lines
Submarine Cables
Aerial Cables
In the 'Direct Buried' method, what is sometimes included along with the conductors?
Cooling pipes
Insulation foam
Metal rods
Plastic covers
Where are the 'Trough' installations commonly used?
Along canal footpaths in London and Oxford
In rural farmlands
Underneath railway tracks
In desert areas
What is a characteristic of the 'Trough' method of cable installation?
Conductors are laid closer together
Conductors are spread far apart
Conductors are suspended in air
Conductors are placed in water
Where can cables be placed for underground purposes?
In a tunnel bored for this purpose
On the surface
In the air
In a river
What was the previous use of tunnels for cables?
To get cables under rivers
To get cables over mountains
To get cables through forests
To get cables across deserts
What is a factor that affects the current carrying capability of cables?
Cable color
Cable length
Cable cross-sectional area
Cable brand
Why might cables laid in ducts require de-rating of their voltage carrying capacity?
Due to the inability to get rid of heat effectively
Due to excessive moisture
Due to high altitude
Due to low altitude
What does AAC stand for in the context of overhead cables?
All Aluminum Conductor
Aluminum Alloy Cable
Aluminum Conductor Steel Reinforced
Alloy Aluminum Conductor
Which type of cable is primarily used in urban areas where spacing is short?
AAC
AAAC
ACSR
ACC
What is a key characteristic of AAAC cables compared to AAC?
Lower mechanical resistance
Better mechanical resistance
Higher metal purity
Less corrosion resistance
Which type of cable is most commonly used for overhead transmission lines?
AAC
AAAC
ACSR
ACC
What does ACSR stand for?
Aluminum Conductor Steel Reinforced
Alloy Conductor Steel Reinforced
Aluminum Cable Steel Reinforced
Alloy Cable Steel Reinforced
Which type of cable allows for longer spans with less supports?
AAC
AAAC
ACSR
ACC
What is the standard strand (wire) count for a 132kV overhead line?
37
3
132
66
How many cores are generally found in an 11kV line?
1
2
3
4
What can be used to determine the cable voltage of overhead lines?
The color of the wires
The height of the towers
The design of the metal towers
The length of the cables

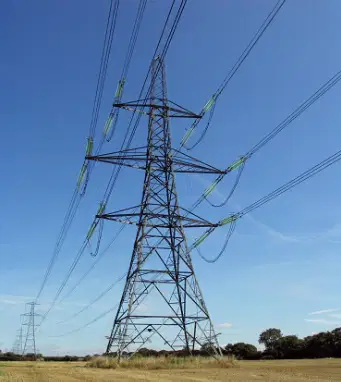

Who owns the 400kV and 275kV overhead lines?
Local municipalities
National Grid
Private companies
DNOs
What is a characteristic of 132kV overhead lines?
Large steel lattice construction
Carried by smaller metal lattice or wooden pylons
Found only in urban areas
Generate no noise pollution

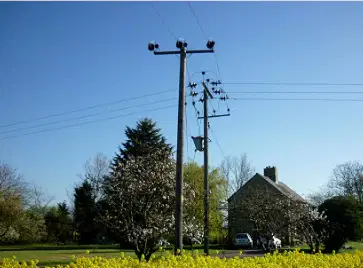

What are the smallest HV lines in the UK typically mounted on?
Steel towers
Concrete poles
Wooden poles
Underground cables
What voltage levels are mentioned as the smallest HV lines in the UK?
230V and 400V
33kV and 11kV
66kV and 132kV
275kV and 400kV
What is a characteristic of 11kV power lines?
Complex design
High above ground
Simple design
Expensive
What material is used as insulators in overhead lines that can become damaged?
Glass
Plastic
Porcelain
Rubber
What document allows network owners to place overhead lines on private land?
Lease agreement
Wayleave document
Purchase contract
Easement deed
What is the purpose of a Buchholz Relay in a transformer?
To cool the transformer
To detect the amount of hydrogen gas generated by oil
To increase the voltage
To decrease the current
In a star connection winding, what is connected to earth?
The common (star point) of a secondary winding
The primary winding
The delta point
The transformer core
What type of cooling system uses oil natural air natural cooling?
ONAN Cooling System
OFWF Cooling System
ONAF Cooling System
Water Cooling System
Which cooling system involves oil forced and water forced cooling?
ONAN Cooling System
OFWF Cooling System
ONAF Cooling System
Air Cooling System
What type of oil is used in transformers and switchgear due to its good dielectric strength?
Vegetable oil
Mineral oil
Synthetic oil
Coconut oil
Why should the dielectric strength of mineral oil be tested before use in electrical equipment?
To ensure it is clean
To verify its color
To confirm its dielectric strength
To check its temperature
What should un-armoured lead sheathed cables be surrounded by when laid in the ground?
Water
Sand or similar graded materials
Concrete
Plastic
What is the minimum requirement for a cable being pulled into a draw-in system?
It must be painted
It must be supported at the duct entrance
It must be heated
It must be cooled
Why might cables laid in ducts need to be de-rated?
Due to their color
Because of their inability to dissipate heat
Because they are too long
Due to their weight
What does not affect the rating of a cable being installed?
The length of the cable
The color of the cable
If it is installed using cable cleats
The weight of the cable
What should be done with all installations of plant and cables?
They should be discarded.
They should be kept and recorded on a central system.
They should be ignored.
They should be hidden.
What is the purpose of reviewing plans and other suitable information before excavation work starts?
To increase costs.
To see all buried services in the area.
To delay the project.
To confuse the workers.
What document is recommended for understanding the dangers from underground services?
HSE's HSG 47 (third edition, 2014)
HSE's HSG 50 (first edition, 2010)
HSE's HSG 60 (second edition, 2012)
HSE's HSG 70 (fourth edition, 2016)
How is an air break switch disconnector shown on a cable plan?
ABSD
ABS
ABD
ASBD
How would a 3 core 300mm² solid aluminium conductor with 11kV be shown?
3c 300 SAC XLPE 11kV
3c 300 SAC XLPE 10kV
3c 300 SAC XLPE 12kV
3c 300 SAC XLPE 9kV
What is the function of HV circuit breakers in a multi-break construction?
To increase voltage.
To divide the total interrupting duty between several breaks.
To decrease current.
To combine the total interrupting duty into one break.
What is the purpose of a fault thrower switch in electrical systems?
To increase voltage levels
To allow upstream protection devices to operate
To decrease current flow
To disconnect power supply
What is the main function of lightning arrestors?
To increase voltage
To capture and discharge over voltages
To reduce current
To disconnect circuits
Why is earthing important in electrical engineering?
To provide a high-impedance fault path
To increase electrical resistance
To provide a low-impedance fault path
To decrease voltage levels
What is the purpose of bonding metal work in electrical systems?
To increase electrical resistance
To create an equipotential area
To decrease voltage levels
To disconnect circuits
What is the purpose of having a low earth-fault loop impedance?
To increase electrical resistance
To ensure enough current flows to operate protective devices
To reduce voltage stabilization
To disconnect temporary earth bonds
Why are temporary earth bonds put in place during live jointing?
To increase cable resistance
To ensure continuity of cable sheaths
To disconnect the earth link electrodes
To stabilize voltage
What characteristic must earth link electrodes have?
High electrical resistance
Low electrical resistance
High voltage stabilization
High current flow
What is the purpose of earthing a neutral point on a 4-wire system when working on LV?
To increase current flow
To ensure voltage stabilization
To disconnect busbars
To increase electrical resistance
What is used to connect two or more busbars when work is required on them?
Earth link electrode
Temporary earth bond
Busbar coupler (bus coupler)
Voltage stabilizer
What is the primary purpose of Stockbridge dampers on overhead line steel towers?
To increase wind loading
To reduce damage due to vibration
To enhance aesthetic appearance
To apply the circuit main earth
What effect does ice-loading have on overhead lines?
Decreases wind loading
Increases the effect of wind loading
Reduces vibration
Enhances safety
What must be issued before the circuit main earth can be applied to an overhead line?
A maintenance report
A safety document
A vibration analysis
An aesthetic evaluation
What could occur if a conductor is made of a dissimilar metal?
Increased wind loading
Enhanced vibration
Electrolytic action
Improved safety
What is one method mentioned for improving power factor correction in substations?
Installing a transformer
Using a capacitor in the main supply
Adding more resistors
Increasing cable length
Why are interlock systems used in substations?
To increase voltage
To ensure the correct sequence of operations
To reduce noise
To enhance cooling
What is the purpose of placing resistors from the center point of a star-network?
To increase current flow
To limit the earth fault current
To enhance signal strength
To reduce voltage drop
What is done to a cable to minimize the risk of flashover?
It is insulated
It is spiked
It is shortened
It is painted
What must be done before proving an LV cable is 'dead'?
The cable must be cut
The tester must be proven on a known supply
The cable must be heated
The tester must be replaced
What is suggested to protect a supply system from lightning?
Use a plastic cover
Use an over-run earth wire
Increase the height of the tower
Add more capacitors
What could be an indication of excessive corona in cables?
Broken strands or spacers
Increased insulation thickness
Reduced cable length
Enhanced conductivity
What is a potential consequence of ionisation in cable dielectrics?
Improved conductivity
Degradation and deterioration
Increased cable length
Enhanced flexibility
Where is the most stressed part in an HV cable?
The conductor
The insulation adjacent to the conductor
The cable is not stressed
At the mid-air joint
What should be worn when filling voids in compound-filled joint boxes with polyurethane resin?
Regular clothing
PPE such as eye protection, overalls, and gloves
No special equipment
Only gloves
What are the two main categories of cable faults?
Short-circuit and ground faults
Open-circuit and short-circuit faults
Insulation and conductor faults
Voltage and current faults
What is an open-circuit fault in cables?
A continuous circuit
A break in the circuit
An increase in voltage
A decrease in current
What is a common cause of short-circuit faults?
Overloading a circuit
Two cables linked together
Using a low-quality fuse
Excessive voltage supply
What can prevent many electrical faults and issues?
Regular preventative maintenance
Increasing voltage supply
Using cheaper materials
Ignoring minor faults
What is the result of a short-circuit fault?
Increased power efficiency
A complete circuit
A tripped breaker or blown fuse
Improved system performance
