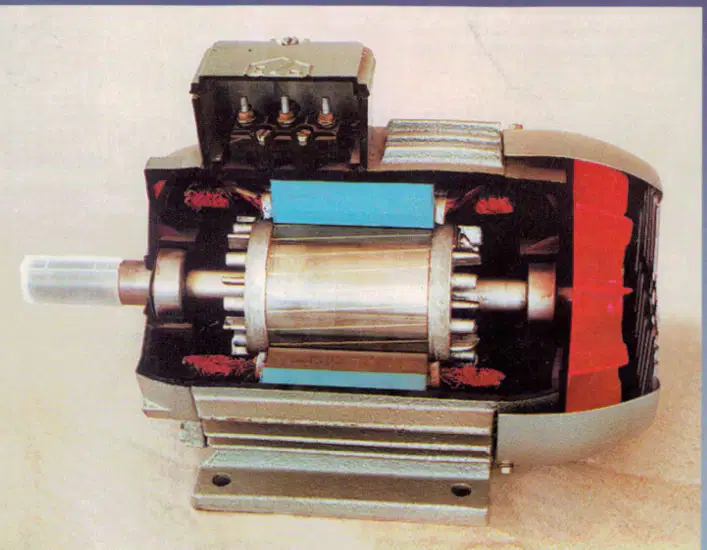

Which type of electric motor is featured in the document?
Three-phase induction motor
Single-phase synchronous motor
DC motor
Universal motor
Which company produced the three-phase induction motors shown in the document?
S.C. Electroprecizia S.A.
Siemens AG
General Electric
ABB Ltd.
In which country is S.C. Electroprecizia S.A. located?
Romania
Germany
France
Italy
The document title is presented in multiple languages. Which of the following is NOT one of the languages used?
Spanish
Romanian
English
French
Strategically, why might a company present its product information in multiple languages on the cover page?
To appeal to a broader international market
To reduce printing costs
To comply with local regulations only
To limit distribution to one country
Which of the following is NOT a site operating condition for three-phase induction motors as described in the document?
Ambient air temperature above 60°C
Altitude max. 1000 m above sea level
Relative humidity max. 65%±15% at 25°C
Ambient air temperature -5°C ÷ +40°C
What is the maximum number of starts per hour allowed for three-phase induction motors under duty type S1?
6
10
3
12
Which protection degrees are available for the asynchronous three-phase electric motors mentioned in the document?
IP44; IP54; IP55
IP20; IP30; IP40
IP65; IP67; IP68
IP23; IP33; IP43
What is the purpose of the B14 construction form in three-phase induction motors?
Used for motors with frame size up to 112 inclusive
Used for motors with frame size above 160
Used for motors with frame size below 80
Used for motors with frame size up to 200
If a motor is to be installed at a site above 1000 m altitude, what special execution can be requested according to the document?
Tropicalized execution T2
Waterproof execution T3
Explosion-proof execution T4
High-voltage execution T5
Which insulating classes are available for the three-phase induction motors described?
B or F, at request
A or C, at request
D or E, at request
G or H, at request
A student is planning to install a three-phase induction motor in a vertical mounting position. What should they consider regarding the axial load?
The axial load should not be greater than the weight of a normal driving element.
The axial load can be unlimited.
The axial load should be twice the weight of the motor.
The axial load should be less than 10 kg.
Which vibration level corresponds to the normal standard class for cast iron motors?
1.8 mm/sec
2.8 mm/sec
1.12 mm/sec
3.5 mm/sec
Why might a motor be produced with tropicalized execution T2?
For use at sites that exceed 1000 m above sea level
For underwater applications
For high-voltage applications
For use in explosive atmospheres
Which standards do the three-phase induction motors comply with?
International IEC and Romanian standards
Only ISO standards
Only American NEMA standards
Only European EN standards
Which environmental condition is specified for the operation of three-phase asynchronous motors according to the document?
Maximum 1000 m above sea level
Minimum 2000 m above sea level
Maximum 500 m above sea level
Minimum 500 m above sea level
What is the standard protection degree for the motors described in the document?
IP44; IP54; IP55
IP20; IP21; IP22
IP65; IP66; IP67
IP30; IP31; IP32
Which material is used for the construction of motors with a shaft height up to 112 mm?
Aluminium
Copper
Steel
Plastic
For motors with a vertical shaft, what is not allowed according to the document?
Axial forces exceeding the weight of the rotor
Mounting in horizontal position
Use in humid environments
Operation at 60 Hz frequency
Which class of insulation is mentioned for the motors in the document?
F
H
B
C
What is the maximum relative humidity specified for the motors' environment?
65±15% at 25°C
80±10% at 30°C
50±5% at 20°C
90±20% at 40°C
Which international standard do the motors comply with?
IEC
ISO
ANSI
DIN
What is the standard vibration level for cast iron motors according to the document?
1.8 mm/sec
2.5 mm/sec
1.2 mm/sec
3.0 mm/sec
How many starts per hour are allowed for continuous operation (S1) of the motors?
6 starts per hour
10 starts per hour
3 starts per hour
12 starts per hour
If a customer requires motors for use above 1000 m altitude, what can be provided?
Tropicalized execution T2 with corrections
Standard execution without changes
Only aluminium construction
No solution available
What is the power (Putere) in kW for a 2-pole, 3000 RPM motor with a frame size of 80?
0.75 kW
1.1 kW
0.55 kW
2.2 kW
If you need a motor with a speed of approximately 1450 RPM and a power of 11 kW, which frame size should you select according to the table?
160M
132S
100L
180L
A project requires a motor with a weight less than 10 kg, a power of at least 0.75 kW, and a speed of 1000 RPM. Which frame size(s) from the table would be suitable?
80, 90S, 90L
63, 71, 80
100L, 112M
132S, 132M
What is the rated current (Intensitate nominală) for a 4-pole, 1500 RPM, 2.2 kW motor with a frame size of 100L?
5.27 A
4.95 A
3.22 A
2.68 A
Compare the efficiency (η) of a 2-pole, 3000 RPM, 5.5 kW motor (frame size 132S) and a 4-pole, 1500 RPM, 5.5 kW motor (frame size 132S). Which one is more efficient?
2-pole, 3000 RPM motor
4-pole, 1500 RPM motor
Both have the same efficiency
Cannot be determined from the table
You are designing a system that requires a motor with a starting torque (Mn/Mn) of at least 2.5 and a power of 1.1 kW. Which motor configuration from the table would best meet these requirements?
2-pole, 3000 RPM, frame size 90S
4-pole, 1500 RPM, frame size 90S
6-pole, 1000 RPM, frame size 90L
8-pole, 750 RPM, frame size 100L
Which type of motor is described in the document?
Standard three-phase induction motor
Single-phase synchronous motor
DC motor
Stepper motor
What does "MA" stand for in the context of the motor feet?
Non-dismountable feet
Dismountable feet
Aluminium housing
Removable cover
Which material is used for the housing in the "MA-Al, MT" motor type?
Aluminium
Steel
Copper
Plastic
If a motor has "MAR" feet, what does this indicate about its construction?
The feet are dismountable
The feet are welded
The feet are non-dismountable
The feet are made of plastic
Given the table of dimensions, how would you determine the value of "LC" for a frame size of 100 MA-AL?
By looking up the row for 100 MA-AL and reading the value under the "LC" column
By multiplying the value of "A" by 2
By adding the values of "A" and "BB"
By subtracting "IPE" from "AD"
Explain how the multilingual table helps in understanding the motor specifications for international users.
It provides translations of key terms in multiple languages, aiding comprehension for users from different countries.
It lists only the English terms, making it easier for native speakers.
It shows only technical drawings, not terms.
It provides conversion charts for electrical units.
Which type of motor is described in the document?
Standard three-phase induction motor
Direct current motor
Synchronous motor
Stepper motor
What does "MA" stand for in the context of the motor specifications?
Dismountable feet
Non-dismountable feet
Aluminium housing
Removable cover
Which language is NOT used in the description of the motor type on the document?
Romanian
English
French
Spanish
If a motor has "MAR" in its specification, what does this indicate about its feet?
The feet are non-dismountable
The feet are dismountable
The feet are made of steel
The feet are fixed
Given the table, how would you determine the dimension "LC" for a motor with frame size 100 and type MA-AI, F 165?
Look for the intersection of frame size 100 and type MA-AI, F 165, then read the value under the "LC" column
Add the values of "L" and "LB" columns for frame size 100
Subtract "N" from "P" for frame size 100
Use the value from the "HD" column for frame size 100
Why might an engineer choose a motor with "dismountable feet" (MAR) over "non-dismountable feet" (MA)?
For easier maintenance and flexibility in mounting
Because it is less expensive
Because it is more powerful
Because it is lighter
What does "MA" stand for in the context of motor feet types?
Non-dismountable feet
Dismountable feet
Aluminium housing
Removable cover
Which material is indicated by "MA-Al, MT" in the motor specifications?
Aluminium housing
Steel housing
Plastic housing
Copper housing
If a motor is specified as "MAR," what feature does it have?
Dismountable feet
Non-dismountable feet
Aluminium housing
Waterproof casing
Given the technical drawing, which dimension would you check to determine the length of the motor from end to end?
L
DA
AC
HA
A customer needs a motor with removable feet and an aluminium housing. Which specification should you recommend based on the table?
MAR MA-Al,MT
MA MA-Al,MT
MA
MAR

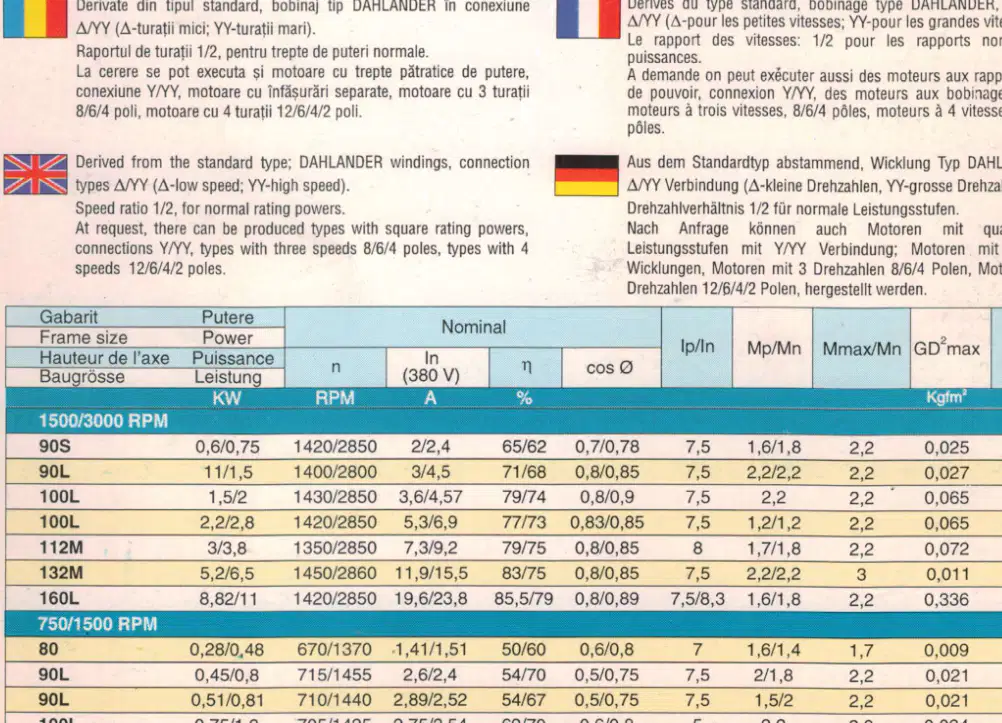

Which connection types are used in DAHLANDER windings for three-phase induction motors with switch-poles?
DYY and YYY
DYY and YY
A/YY and Y/YY
A/YY and YY/YY
What is the speed ratio for DAHLANDER windings in three-phase induction motors with switch-poles?
1/3
1/2
2/3
1/4
Which frame size has a power rating of 2.2/2.5 kW at 1500/3000 RPM according to the table?
90S
100L
112M
132M
If a motor is required to operate with three speeds, which pole configuration is used according to the document?
8/6/4 poles
12/6/4/2 poles
4/2 poles
6/4 poles
Based on the table, what is the efficiency (η) percentage for a 132M frame size motor at 1500/3000 RPM?
65/62
79/74
85/79
75/80
DAHLANDER windings are used in three-phase induction motors with switch-poles because:
They allow for variable voltage operation, improving energy efficiency.
They enable the motor to operate at two different speeds by changing the pole configuration, providing flexibility for different applications.
They reduce the size of the motor, making it more compact.
They increase the maximum torque output of the motor.
A customer requests a motor with four speeds. According to the document, which pole configuration should be provided?
8/6/4 poles
12/6/4/2 poles
6/4/2 poles
4/2 poles
What is the maximum torque (Mmax/Mn) for a 100L frame size motor at 1500/3000 RPM?
2.2
2.0
2.1
1.7
The main advantage of using three-phase induction motors with switch-poles in industrial applications is:
They are less expensive than single-phase motors.
They provide multiple speed options, allowing for greater operational flexibility and efficiency in various industrial processes.
They require less maintenance than other motor types.
They consume less power at all speeds.
