Shielded Metal Arc Welding

Multiple Choice

What is the significance of welding in modern manufacturing and construction industries?

• Welding is significant for creating strong, durable joints in manufacturing and construction, enhancing structural integrity and efficiency.
• Welding is significant for reducing costs in manufacturing processes.
• Welding is mainly important for aesthetic enhancements in structures.
• Welding is primarily used for decorative purposes in construction.

Multiple Choice

Which of the following is a primary purpose of the shielding in Shielded Metal Arc Welding (SMAW)?

• To protect the welder from heat

• To prevent oxidation of the weld

• To increase the speed of welding

• To reduce the cost of welding

Multiple Choice

The arc gap in a DC arc welding machine is located between the electrode and the ___.

• ground
• workpiece
• insulator
• circuit

Multiple Choice

What is the purpose of the slag covering in the SMAW process?

• To protect the weld pool from atmospheric contamination

• To increase the welding speed

• To cool the base metal rapidly

• To provide electrical insulation

Multiple Choice

Describe two common types of weld defects and explain how they can be identified during inspection.

• Porosity and lack of fusion
• Undercutting and slag inclusion
• Overheating and spatter
• Cracking and warping

Multiple Choice

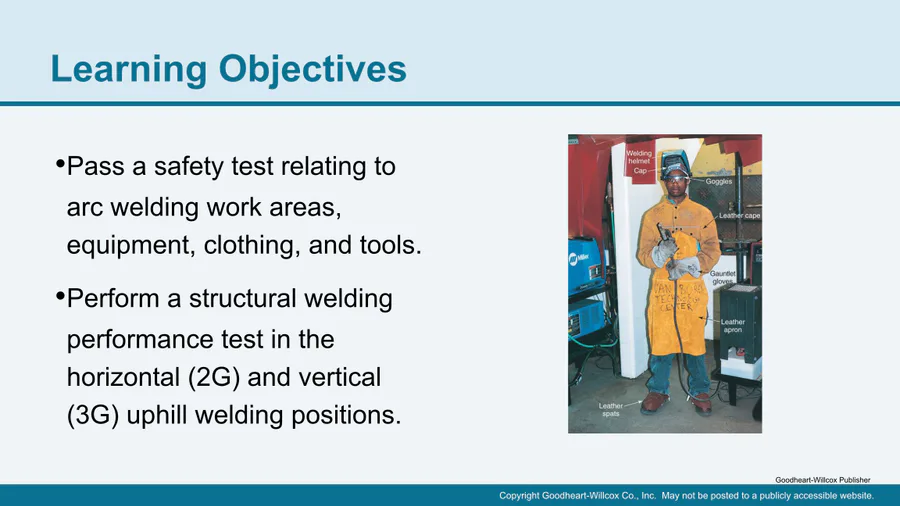

Which of the following are key safety equipment items that should be worn during arc welding?

• Welding helmet, leather apron, gauntlet gloves, goggles

• Safety glasses, cotton shirt, sneakers, baseball cap

• Plastic apron, latex gloves, dust mask, earmuffs

• Lab coat, rubber gloves, safety boots, face shield

Multiple Choice

Explain the difference between AC and DC power sources in SMAW and discuss how the choice of power source can affect the welding process.

• AC power sources alternate the current direction, while DC power sources provide a constant current. The choice affects arc stability and weld quality.
• AC power sources provide a constant current, while DC sources alternate direction.
• DC power sources are more efficient than AC sources in all applications.
• The choice of power source has no impact on the welding process.

Multiple Choice

Which of the following statements best describes the process of Shielded Metal Arc Welding (SMAW)?

• It uses a consumable, flux-covered electrode to produce an arc between the base metal and the electrode.

• It uses a non-consumable electrode and shielding gas to weld metals.

• It relies solely on pressure and heat without an electric arc.

• It uses only AC power sources for welding.

Multiple Choice

Which law explains the relationship between voltage, current, and resistance in a closed circuit as shown in the DC arc welding diagram?

• Ohm's Law

• Faraday's Law

• Kirchhoff's Law

• Lenz's Law

Multiple Choice

Why is it important for a welder using SMAW to maintain a constant arc length, and what effect does arc length have on the welding current?

• A constant arc length is unnecessary for weld strength; it has no impact on current.
• Maintaining arc length is only relevant for aesthetic purposes, not for heat control.
• Arc length should vary to create different weld patterns; it does not influence current.
• It is important to maintain a constant arc length to ensure stable heat input and weld quality; arc length directly affects the welding current.

Multiple Select

Which of the following statements about the welding arc and its appearance are correct?

• The arc stream appears yellow due to vaporized metal.

• The arc flame is part of the welding arc.

• Liquid metal in the arc stream appears green.

• The arc stream is not visible during welding.

Multiple Choice

In a direct current electrode negative (DCEN) circuit, electrons flow from the ___ terminal of the machine to the electrode.

• positive
• neutral
• ground
• negative

Multiple Choice

What factors determine whether DCEN or DCEP should be used in arc welding, and how does the choice affect weld penetration?

• DCEN is used for deeper penetration in thicker materials, while DCEP is used for better bead appearance in thinner materials.
• DCEP is suitable for welding in all thicknesses without affecting penetration.
• DCEN is used for better bead appearance in thicker materials.
• DCEP is preferred for deeper penetration in all materials.

Multiple Choice

Which of the following is NOT a type of arc welding machine used for alternating current arc welding?

• Transformer-type

• Inverter

• Engine-driven generator

• Solar-powered unit

Multiple Choice

Which frequency is commonly used for alternating current in the United States?

• 50 Hz

• 60 Hz

• 100 Hz

• 120 Hz

Multiple Choice

Explain why AC welding requires electrodes designed specifically for use with alternating current.

• AC welding requires electrodes specifically designed for alternating current to manage polarity reversal and ensure stable arc performance.
• AC welding requires electrodes that are thicker for better conductivity.
• Electrodes for AC welding are designed to enhance heat dissipation only.
• AC welding uses electrodes that are universal for all current types.

Multiple Select

Which of the following are characteristics of a DC constant current arc welding machine?

• Ability to choose DCEP

• Can be used in positions other than flat

• Electrodes designed to weld nickel, aluminum, and copper generally use DCEP

• Requires only AC electrodes

Multiple Choice

A disadvantage of DC arc welders is that they are generally more ___ than similar AC arc welding machines.

• efficient
• lightweight
• portable
• expensive

Multiple Choice

What is the major disadvantage of AC arc welding machines according to the slides?

• Not all SMAW electrodes can be used with alternating current

• They are more expensive than DC machines

• They require special ventilation

• They have poor penetration

Multiple Choice

List and describe any three essential parts of an arc welding station and their functions.

• 1. Welding Machine: Generates the electric arc for welding. 2. Workpiece Holder: Secures the materials being welded. 3. Personal Protective Equipment (PPE): Protects the welder from hazards.
• Cooling System: Maintains temperature of the welding machine.
• Welding Helmet: Provides ventilation during welding.
• Material Storage: Holds raw materials for future projects.

Multiple Choice

Which of the following is NOT a step to inspect an arc welding station before beginning to weld?

• Check all parts of the arc welding station

• Make sure the electrode holder handle is not cracked

• Turn on the ventilation system

• Start welding immediately without inspection

Multiple Choice

Helmets or handheld face shields with approved lenses must be worn to protect eyes from ___ radiation.

• radiofrequency (RF)
• ultraviolet (UV)
• visible (VIS)
• infrared (IR)

Multiple Choice

What is the purpose of turning on the ventilation system before beginning to weld?

• To keep the area cool

• To remove harmful fumes

• To increase brightness

• To reduce noise

Multiple Choice

List and explain two hazards associated with arc welding and how they can be avoided.

• Noise pollution and equipment malfunction risks. They can be avoided by using ear protection and regular maintenance checks.
• Two hazards associated with arc welding are UV radiation exposure and fire/explosion risks. They can be avoided by using protective gear and maintaining a clean work environment.
• Inhalation of toxic fumes and electric shock risks. They can be avoided by using ventilation systems and proper grounding.
• Exposure to extreme heat and metal splatter risks. They can be avoided by using heat-resistant clothing and proper shielding.

Multiple Choice

Which items of protective clothing are necessary to protect a welder from burns and flying sparks?

• Leather gloves and apron

• Cotton shirt and jeans

• Plastic gloves and raincoat

• Wool sweater and shorts

Multiple Choice

Why is it important to avoid using arc welding equipment in wet or damp areas?

• It is safe to use arc welding equipment in wet areas for better cooling.
• It is important to avoid using arc welding equipment in wet or damp areas to prevent electric shock and ensure safety.
• Using arc welding equipment in damp areas improves the welding quality.
• Wet conditions help in reducing the risk of fire during welding.

Multiple Choice

Reflecting on today's lesson about shielded metal arc welding, what is one question you still have or a topic you would like to explore further?

• What safety measures should be taken during shielded metal arc welding?
• What are the different types of electrodes used in shielded metal arc welding and their applications?
• How does shielded metal arc welding compare to gas tungsten arc welding?
• What are the common defects found in shielded metal arc welding?

Multiple Choice

What is one key safety precaution to take when performing shielded metal arc welding?

• Wearing protective gloves and helmet

• Using bare hands

• Ignoring ventilation

• Welding without eye protection
