WorksheetsElectrical Supplies and Equipment Quiz
Total questions: 39
Worksheet time: 20mins
What is another name for a radial circuit?
Lighting circuit
Power circuit
Data circuit
Control circuit
What type of appliances does a radial circuit typically feed?
Television and radio
Shower, cooker, or central heating system
Computer and printer
Refrigerator and microwave
What is the maximum floor area for an A3 radial circuit?
100m²
250m²
500m²
750m²
What size PVC cable is used in a radial circuit?
1.0mm²
2.5mm²
4.0mm²
6.0mm²
What is the MCB rating for a radial circuit in the consumer unit?
10A
16A
20A
32A
What is the maximum floor area served by an A2 radial circuit?
50m²
75m²
100m²
125m²
What is the overcurrent protective device rating for an A2 radial circuit?
20 A
25 A
30 or 32 A
40 A
What is the minimum live conductor cross-sectional area for copper conductor thermoplastic or thermosetting insulated cables in an A2 radial circuit?
1.5 mm²
2.5 mm²
4 mm²
6 mm²
What is a ring main typically used for in a property?
To supply lighting fixtures
To supply the socket outlets
To supply water pipes
To supply gas lines
How many ring mains are typically found in an average property?
One
Two
Three
Four
Which areas of a property typically have ring mains?
Bathroom, garage, attic
Kitchen, downstairs, upstairs
Basement, garden, roof
Living room, dining room, hallway
What are many electricians choosing to install instead of ring mains?
Parallel circuits
Series circuits
Radials
Transformers
What is the maximum floor area covered by an A1 Ring circuit?
100m²
50m²
150m²
200m²
What size PVC cable is used in a ring main circuit?
2.5mm²
1.0mm²
3.0mm²
4.0mm²
What is the circuit protective device rating for a ring main?
30A or 32A
20A or 22A
40A or 42A
10A or 12A
What is the purpose of a ring main circuit in domestic heating?
To provide a continuous loop of electrical supply
To reduce water pressure in plumbing systems
To increase the temperature of heating systems
To control the flow of gas in heating systems

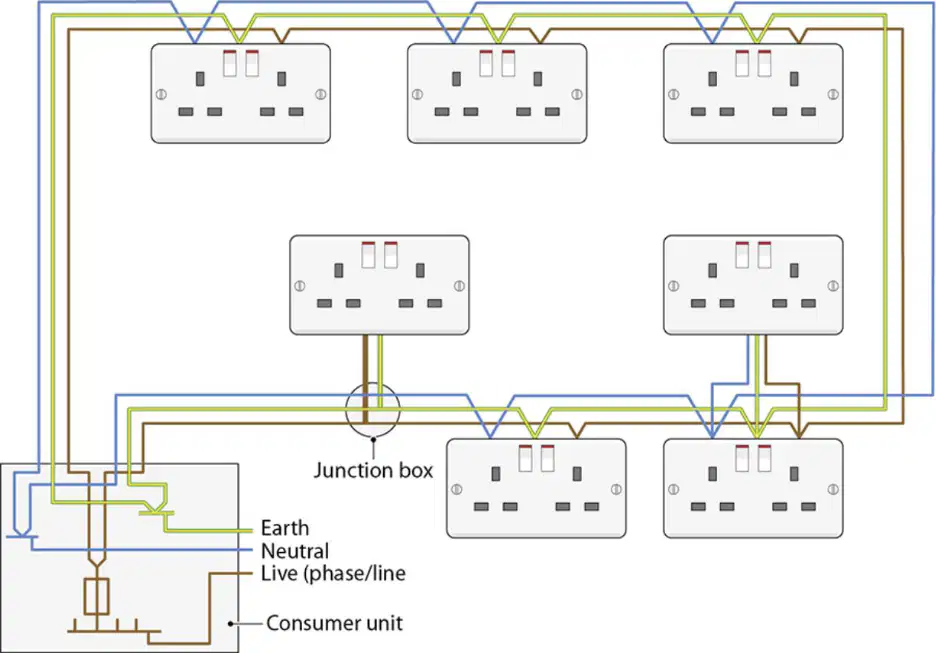

Which component connects the ring main circuit to the consumer unit?
Junction box
Thermostat
Pressure valve
Radiator
What is the typical rating of a circuit protective device for a shower circuit within a dwelling?
One of the lowest rated
One of the highest rated
Average rated
Not rated
What is the power rating of some modern electric showers?
5kW
8kW
11kW
15kW
What is the required supply for some modern electric showers?
30A
45A
60A
75A
What is the maximum CSA (cross-sectional area) of the supply cable required for some modern electric showers?
10mm²
12mm²
16mm²
20mm²
Diagram showing a double-pole pull cord switch with indicator lamp and mechanical on/off indicator, and a shower unit with labeled components such as scald guard thermostat, heater, safety thermal cut-out, flow switch, wiring block, cold water connection, and hot water outlet.
A diagram of a double-pole pull cord switch with indicator lamp and mechanical on/off indicator, and a shower unit with labeled components.
A diagram of a single-pole switch with no indicator lamp and a shower unit with unlabeled components.
A diagram of a double-pole pull cord switch without an indicator lamp and a shower unit with labeled components.
A diagram of a double-pole pull cord switch with indicator lamp and mechanical on/off indicator, but without a shower unit.
What type of flex is most suitable for immersion heater supplies?
Standard flex
Heat-resistant flex
Flexible conduit
Non-heat-resistant flex
How is the circuit protection device sized in relation to the heater?
According to the size of the heater
According to the output of the heater
According to the color of the heater
According to the brand of the heater
What is a spur in the context of electrical circuits?
A) A type of fuse
B) An outlet connected from an existing power circuit
C) A circuit breaker
D) A type of light switch
How can a new outlet be connected using a spur?
A) By using a circuit breaker
B) By adding a junction box to the cable
C) By installing a new power line
D) By replacing the existing socket
Is it acceptable to connect more than one spur from any outlet?
Yes, it is acceptable.
No, it is not acceptable.
Yes, but only if they are connected to the same outlet.
No, unless they are connected to different outlets.
What does the image in the document show?
A ring main with spurs feeding various fixed appliances.
A single spur connected to multiple outlets.
A circuit with no spurs.
A diagram of a water heating system.
What is the typical range of amp protective devices used to protect domestic lighting circuits?
1-2 amp
3-4 amp
5-6 amp
7-8 amp
What size cable is normally used for wiring domestic lighting circuits?
0.5mm² or 0.75mm²
1.0mm² or 1.5mm²
2.0mm² or 2.5mm²
3.0mm² or 3.5mm²
What type of supply does a three-phase motor require to operate?
Single-phase 230V
Three-phase 400V
Direct current 12V
Alternating current 110V
Who should work on three-phase motors?
Anyone interested
Only those competent
Only electricians
Only engineers
What is required for a three-phase motor to operate?
A contactor energized by a control circuit
A single-phase supply
A manual switch
A direct connection to the motor
What voltage is a shaver socket classed as?
110V
230V
240V
120V
Why is a shaver socket suitable for use in a bathroom?
It is waterproof
It is separated from earth by a transformer
It has a built-in circuit breaker
It is made of plastic
What prevents an electric shock to earth in a shaver socket?
A fuse
A circuit breaker
No connection between input and output
A plastic cover
What is the ratio of the primary to secondary transformer coils in a shaver socket?
1:1
2:1
1:2
3:1
What happens to the voltage in a shaver socket with equal primary and secondary coils?
It remains the same
It is stepped up
It is stepped down
It is doubled
What is the purpose of electrical separation or isolation in a shaver socket?
To prevent shock from the secondary side to earth
To increase voltage
To decrease voltage
To allow current flow to earth
