WorksheetsScience Quarterly Exam
Total questions: 80
Worksheet time: 1hrs 1mins
A cannonball fired horizontally hits the ground at the same time as one dropped from the same height. Why does this happen? Because...
Gravity pulls on both equally hard, but at different angles
Horizontal motion doesn’t affect how gravity pulls it down vertically
Air resistance acts equally on both, causing them to reach the ground together
Both objects have the same weight, so they fall at identical rates regardless of direction
A baseball player throws a ball horizontally (0°). Which statement BEST describes the ball’s motion after it is thrown? (Neglect air resistance) Its vertical speed...
remains the same, and its horizontal speed remains the same.
increases, and its horizontal speed increases.
increases, and its horizontal speed remains the same.
increases and its horizontal speed decreases
Which of the following correctly arranges the angles of projection in order of increasing maximum range attained, assuming the same initial speed for each?
I. 15 degrees II. 25 degrees III. 40 degrees IV. 60 degrees
I-II-IV-III
II-I-III-IV
III-IV-II-I
IV-III-I-II
Which of the following correctly arranges the angles of projection in order of increasing maximum height attained, assuming the same initial speed for each?
I. 25 degrees II. 45 degrees III. 15 degrees IV. 60 degrees
I-II-IV-III
II-I-III-IV
III-I-II-IV
IV-III-I-II
A basketball shot arcs and lands in the hoop. When is its vertical speed becomes zero?
Just before it's released, because it hasn’t started moving yet
At the moment it makes contact with the hoop or backboard
Vertical speed is constantly changing and therefore is never truly zero
At the top of the arc, when the ball briefly stops moving upward and starts moving downward

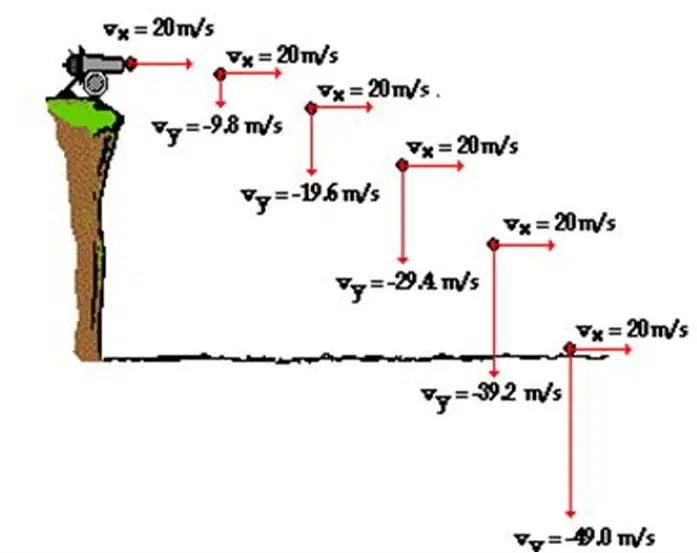

Refer to the illustration. What is the vertical velocity (Vy) of a projectile at the moment it is thrown horizontally?
It increases due to gravity.
It is equal to the final vertical velocity.
It is equal to the final horizontal velocity.
It is equal to the initial horizontal velocity.
A car with a mass of 1200 kg collides with a stationary car of mass 1000 kg. If the initial velocity of the moving car is 20 m/s and it comes to a stop after the collision, which of the following is the change in momentum of the car?
0 kg· m/s
2000 kg· m/s
24000 kg· m/s
40000 kg· m/s
Two cars of equal mass collide head-on. Car A was initially moving with a velocity of 10 m/s to the right, and Car B was initially moving with a velocity of 8 m/s to the left. After the collision, Car A comes to a stop. Which of the following is the velocity of Car B after the collision?
0 m/s
2 m/s, right
2 m/s, left
8 m/s, left
In a collision between two objects, which of the following conditions must be met for the collision to be considered elastic? The...
collision occurs in a vacuum.
momentum of the system is conserved.
objects stick together after the collision.
kinetic energy of the system is conserved.
During a rainy day, a delivery driver suddenly steps on the brakes. A fragile box slides forward inside the van and hits the wall. To reduce damage to packages, padded cushions are installed along the van's interior walls. Why do these padded cushions help protect the packages? They...
increase the force applied during impact.
reduce the time of collision, increasing the impulse.
stop the package before it hits the wall, eliminating impulse.
increase the time over which the impact occurs, reducing the force.
During PE class, Bianca hits a volleyball during a fast-paced rally. Her arm applies a force of 50 N on the ball for 0.04 seconds. Which of the following is the impulse delivered to the volleyball?
1.25 N· S
2.0 N· s
20 N· s
200 N· s
During a school fair, two students—Eli and Jenna—are driving bumper cars. Eli's car bumps into Jenna's stationary car. Which type of collision most likely happened, and which of the following is the best explanation of this collision?
Elastic collision, because the total kinetic energy increases.
Inelastic collision, because the cars stick together and total momentum is lost.
Elastic collision, because both speed and momentum are completely conserved.
Inelastic collision, because total momentum is conserved but some kinetic energy is lost.
Which of the following events does NOT show a transformation of potential to kinetic energy?
a rubber band being stretched
a girl being lifted in a cheer dance
an athlete that throws a shot put ball
an archer releasing the arrow from a bow
At a skate park, Marco rides his skateboard to the top of a ramp that is 3.0 meters high. His mass, including the skateboard, is 60 kg. He then rolls down the ramp without pushing. Which of the following BEST describes what happens to Marco’s energy as he moves from the top to the bottom of the ramp? His...
gravitational potential energy is completely destroyed.
total energy decreases as he moves because of motion.
kinetic energy decreases while potential energy increases.
gravitational potential energy transforms into kinetic energy.
Samantha, who has a mass of 50 kg, starts from rest at the top of a water slide that is 5 meters above the pool. Assume no friction or air resistance. How fast is Samantha moving when she reaches the bottom of the slide?
5 m/s
7 m/s
10 m/s
15 m/s
In a nuclear power plant, the process of nuclear fission generates heat, which is used to produce steam that drives turbines to generate electricity. Which of the following BEST describes the energy transformations that take place in a nuclear power plant?
Chemical energy → Mechanical energy → Nuclear energy
Nuclear energy → Heat energy → Mechanical energy → Electrical energy
Chemical energy → Nuclear energy → Mechanical energy → Electrical energy
Light Energy →Heat energy → Nuclear energy → Mechanical Energy → Electrical energy
Which of the following exhibits both potential and kinetic energy?
book on a shelf
satellite orbiting the Earth
bungee jumper at his lowest point
swinging pendulum at its highest point
In science class, Maria reads about the concept of a perpetual motion machine, which is supposed to run indefinitely without needing an external energy source. She wonders if such a machine could be built to provide endless energy. Which of the following statements BEST explains why perpetual motion machines are not possible? They...
lose energy as heat because of friction.
generate more energy than they consume.
violate the law of momentum conservation.
must operate faster than the speed of light.
Consider the following situations where energy transformations occur. Analyze each situation to determine whether potential or kinetic energy is most relevant at each point. Which of the following correctly matches each situation with the type of energy it most involves?
1 - Kinetic Energy, 2 - Potential Energy, 3 - Kinetic Energy, 4 - Potential Energy
1- Potential Energy, 2 - Kinetic Energy, 3 - Kinetic Energy, 4 - Kinetic Energy
1- Kinetic Energy, 2 - Kinetic Energy, 3 - Potential Energy, 4 - Potential Energy
1 - Potential Energy, 2 - Potential Energy, 3 - Kinetic Energy, 4 - Potential Energy
Which of the following examples best demonstrates that heat can do work?
A pot of water boiling on a stove.
A cup of hot tea cooling down.
A block of ice melting into water.
A steam engine converting heat into mechanical energy.
James and his friend are preparing for a weightlifting competition in the school gym. James decides to lift a 50 kg weight from the floor to a bench 1.5 meters high. He applies a constant force of 500 N. While lifting the weight, James feels like he's using more energy than expected. Why do you think this is happening, and how much work does James do to lift the weight?
500 J
750 J
1500 J
1000 J
Imagine you are in a building, and the elevator lifts you and a friend 30 meters up. The elevator lifts a total weight of 800 kg at a constant speed in 40 seconds. You begin to wonder: How much power is the elevator using, and how does this power compare to the effort of running up the stairs?
1500 W
2800 W
5900 W
9800 W
Sarah, John, and Emma each perform a task that requires energy. Consider the following scenarios:
1. Sarah lifts a 10 kg box to a height of 2 meters in 4 seconds.
2. John runs up a 10-meter incline while carrying a 20 kg backpack in 10 seconds.
3. Emma pushes a 50 kg sled across a flat surface with a force of 200 N for 15 meters in 30 seconds.
Which of the following individuals exerts the most power?
Sarah, because she lifts the box quickly.
John, because he is carrying a heavy backpack up an incline.
Emma, because she pushes a heavy sled over a longer distance.
It is impossible to determine without knowing their total energy use.
During a school community day, several students volunteered to help with various tasks. Each student took on a different job:
1. Anna held a stack of books in her arms while waiting for someone to open the library door.
2. Ben pushed a heavy cart full of science materials down the hallway to the lab.
3. Carla tried to slide a jammed locker door open with all her strength, but it didn’t move.
4. Dan stood on a chair to hold up a poster for five minutes while the teacher taped it to the wall.
5. Ellie carried a box of test tubes up a flight of stairs.
Which of the students actually did scientific work on an object, according to the physics definition of work?
Anna and Carla
Anna and Dan
Ben and Ellie
Carla and Dan
A 0.5 kg block of iron absorbs 4500 J of heat, and its temperature rises from 25°C to 55°C. What is the specific heat capacity of iron based on this data?
100 J/kg· °C
150 J/kg· °C
300 J/kg· °C
500 J/kg· °C
A cooking pan company is designing a new frying pan that heats up quickly using the least amount of energy. The designers are comparing three metals with different specific heat capacities:
Aluminum: 900 J/kg· °C,
Copper: 385 J/kg· °C,
Stainless Steel: 500 J/kg· °C.
They want to choose a metal that reaches high temperatures fast when heated. Which metal should the company choose to make the frying pan heat up quickly using less energy?
aluminum
copper
stainless steel
any of the three will heat the same
A civil engineer is selecting materials to build a pedestrian bridge that will be exposed to intense sunlight during the day and cool temperatures at night. The goal is to minimize expansion and contraction due to temperature changes, which could weaken the structure over time. The engineer is choosing between three metals:
Steel: 470 J/kg· °C,
Aluminum: 900 J/kg· °C,
Copper: 385 J/kg· °C
. Which metal is the most suitable choice to help reduce temperature-related stress in the bridge structure?
aluminum
copper
steel
any of them, as long as they are strong
During a laboratory experiment, a student places a sealed metal canister in a warm water bath. The canister absorbs 155 joules of heat from the water. Since the lid is tightly sealed and does not move or expand, no mechanical work is done. Which of the following is the change in internal energy of the canister system?
–155 J
–77.5 J
77.5 J
155 J
A gas is sealed inside a cylinder with a movable piston. During a heating process, the gas expands and does 100 J of work by pushing the piston upward. After the process, the internal energy of the gas increases by 250 J. How much heat was added to the gas during the process?
–150 J
–75 J
75 J
350 J
Engineers at a geothermal site want to increase the efficiency of heat transfer between the hot rocks and the water. Which of the following solutions would be MOST effective?
Reduce the temperature of the heat source
Use pipes made of wood to reduce heat loss
Use materials with high thermal conductivity
Increase the distance between heat source and turbine
A student builds a model where heat from a burning candle is used to spin a small turbine. Which of the following is the main purpose of this model? To...
explain the process of combustion.
illustrate that heat can be converted into work.
show the conversion of chemical energy into heat.
demonstrate the relationship between heat and light.
A heat engine operates between a high-temperature reservoir at 600°C and a low temperature reservoir at 100°C. Which of the following statements is correct? The efficiency of the heat engine...
depends on the specific heat capacity of the working fluid.
is not affected by the temperature difference between the reservoirs.
will decrease if the temperature difference between the reservoirs increases.
will increase if the temperature difference between the reservoirs decreases.
Why can’t a geothermal plant convert 100% of its heat input into electrical energy?
Some energy lost as waste heat
The turbines aren’t strong enough
The water isn't hot enough to boil
All the heat gets absorbed into the generator
Which of the following is NOT TRUE about geothermal plants?
heat energy is transformed into electrical energy
the steam spins a turbine that produces electricity
heat from earth’s interior is used to generate electricity
the steam is directly transmitted & distributed through electric wires
An engineer is designing a lighting system for a new home. The system uses a 120 V power supply, and each light fixture has a resistance of 60 Ω. Which of the following is the correct amount of current flowing through each light fixture?
0.5 A
2 A
1.2 A
1.5 A
A circuit in a factory has a 10 Ω resistor, and the voltage applied across it is 220 V. If an engineer is concerned about overheating, what will the current be, and what safety measures can be applied?
22 A – Use fuses to prevent overcurrent
11 A – Add resistors in parallel to reduce the current
5 A – Use thicker wires for less resistance
22 A – Use a circuit breaker to interrupt the flow
You are designing the lighting system for a new house. You have a total of 6 light bulbs, each with a resistance of 30 Ω, and the house is powered by a 120 V electrical system. If you wire the bulbs in series, which of the following is the CORRECT total current flowing through the circuit?
0.4 A
0.7 A
1 A
2 A
You are connecting several light bulbs in your room. Each bulb has a resistance of 100 Ω, and you want to connect 4 bulbs in parallel to a 120 V supply. Which of the following will happen if too many bulbs are connected?
The total resistance will increase, and the current will decrease.
The voltage will be divided equally across each bulb, making them dimmer.
The current will stay the same regardless of how many bulbs are connected.
The total resistance will decrease, and the current will increase, potentially overloading the circuit.
You are given two electric appliances: a blender with a resistance of 40 Ω and a microwave with a resistance of 30 Ω. Both appliances are connected to a 240 V supply in parallel. Which appliance uses more power?
The blender uses more power because it has a higher resistance.
The microwave uses more power because it has a lower resistance.
Both appliances use the same amount of power because they are in parallel.
The blender uses more power because it has a higher voltage.
In a large city, the electricity supply is transmitted from a power station through long-distance power lines. The power station generates electricity at 1000 MW, but only 950 MW reaches the city due to energy loss in the transmission lines. Which of the following could be the main reason for this energy loss, and how can it be reduced? Energy is lost due to the...
weather conditions, and installing insulation on the wires would solve the issue.
generator's inefficiency, and replacing the generator with a newer model would help.
resistance of the wires, and using thicker wires or higher voltage transmission would reduce the loss.
voltage difference between the power station and the city, which can be fixed by lowering the voltage at the power station.
In a wind farm, energy is captured from the wind using turbines. Despite the fact that wind energy is a clean and renewable source, only a fraction of the wind's energy is converted into electricity. Which of the following factors most limits the efficiency of wind turbines?
The cost of installing the turbines.
The weight of the turbine’s generator.
The wind speed and the blade’s design.
The amount of space available for the turbines.
You are designing an electric grill that converts electrical energy into heat. Which of the following is the most efficient way to reduce energy loss in the grill?
Decrease the current to reduce heating.
Increase the voltage of the power supply.
Use a thinner metal for more heat to escape.
Use a thicker metal surface to trap more heat.
Refrigerators are designed to keep food cold by transferring heat from inside the refrigerator to the surroundings. If a refrigerator is not energy efficient, it may consume more electricity than necessary. What causes the energy loss in refrigerators?
The use of electrical components that generate heat.
Energy loss through poorly insulated walls and doors.
The compressor uses too much energy during operation.
The cooling system operates at an inefficient temperature.
In a large factory, electricity is used to power various machines. However, a significant amount of energy is lost as heat due to friction in the moving parts. As an engineer, what is one way you could reduce this energy loss and improve overall efficiency?
Increase the power supply to the machines.
Use machines with higher friction coefficients.
Lubricate moving parts regularly to reduce friction.
Increase the voltage to reduce current in the system.
A mountain village is not connected to the main power grid. Which of the following could be a sustainable solution to generate and distribute electricity locally?
use diesel generators permanently
wait until solar panel prices drop further
extend overhead transmission lines 300 km away
build a micro-hydroelectric system using the nearby river
During a thunderstorm, a substation is damaged, causing a power outage in part of a city. Which part of the electrical system failed?
consumption
distribution
generation
transmission
Why is electricity transmitted over long distances at high voltage but low current? To...
reduce flickering of lights
make power lines look thinner
reduce energy loss due to heat
increase electricity consumption
A student notices large transformers in a power plant and smaller ones near homes. Which of the following is their main function in power systems?
convert solar energy to electrical energy
store excess energy during low demand
increase or decrease voltage as needed
control the direction of current flow
When electricity is generated at a power plant, it is sent through a step-up transformer before entering long-distance transmission lines. Why is this done? To...
make the power lines heavier
reduce energy lost as heat over long distances
make the current stronger for consumers
cool down the electricity
A community uses electricity from a distant wind farm. Before the electricity reaches homes, it passes through a step-down transformer. Which of the following is the purpose of this? To...
double the current for appliances
lower the voltage to a safe level for home use
clean the electricity from wind turbines
increase power for factories
A cyclist is riding down a hill and suddenly applies the brakes. The bike skids to a stop due to friction with the ground. How does friction help in stopping the bike?
It increases the momentum of the bike.
It reduces the mass of the bike.
It increases the speed of the bike.
It converts kinetic energy into thermal energy.
A power plant generates electricity using steam turbines. If the steam temperature is increased, what effect does this have on the efficiency of the power plant?
Efficiency decreases due to higher heat loss.
Efficiency is only affected by the type of fuel used.
Efficiency remains the same regardless of temperature.
Efficiency increases as the temperature difference grows.
A student is conducting an experiment to measure the acceleration of a toy car rolling down a ramp. If the angle of the ramp is increased, what happens to the acceleration of the car?
The acceleration decreases.
The acceleration remains constant.
The acceleration increases.
The acceleration becomes zero.
A technician is troubleshooting a circuit with a 240 V power supply and a total resistance of 120 Ω. What is the total current flowing through the circuit?
3 A
2 A
1 A
0.5 A
A solar panel system is installed to power a small home. Which of the following is the most effective way to maximize the energy output from the solar panels?
Cover the panels with a protective layer.
Use a tracking system to follow the sun's path.
Reduce the size of the panels to fit the roof.
Install the panels at a fixed angle.
A roller coaster car with a mass of 500 kg reaches the top of a hill that is 20 meters high. What is the gravitational potential energy of the car at this height?
1000 J
5000 J
10000 J
20000 J
In a hydroelectric power plant, water flows from a higher elevation to a lower elevation, turning turbines to generate electricity. What is the primary energy transformation that occurs in this process?
Mechanical energy → Electrical energy
Potential energy → Kinetic energy → Electrical energy
Kinetic energy → Thermal energy → Electrical energy
Potential energy → Thermal energy → Mechanical energy
A student is conducting an experiment to measure the efficiency of a solar panel. If the panel receives 1000 J of solar energy and converts it into 150 J of electrical energy, what is the efficiency of the solar panel?
85%
15%
30%
75%
During a physics demonstration, a ball is dropped from a height of 2 meters. Ignoring air resistance, which of the following statements is true about the ball's energy just before it hits the ground?
It has no energy at all just before impact.
It has minimum potential energy and maximum kinetic energy.
It has maximum potential energy and minimum kinetic energy.
It has equal potential and kinetic energy.
Why is electrical power often transmitted at high voltage and low current?
To increase the brightness of light bulbs
To reduce the resistance of wires
To reduce energy lost as heat
To make transformers smaller
A transmission line has a resistance of 5 Ω. If 10 A flows through it, what is the power lost as heat? Ploss=I^2R
15W
50W
500W
1000W
Draw a circuit with a battery connected to four resistors, R1, R2, R3, and R4, as follows. Resistors R1 and R2 are connected in parallel with each other, resistors R3 and R4 are connected in parallel with each other, and both parallel sets of resistors are connected in series with each other across the battery.
The lamps in a string of decorative lights are connected in parallel across a constant-voltage power source. What happens if one lamp burns out? (Assume negligible resistance in the wires leading to the lamps.)
The brightness of the lamps will not change appreciably.
The other lamps get brighter equally.
The other lamps get brighter, but some get brighter than others.
The other lamps get dimmer equally.
The other lamps get dimmer, but some get dimmer than others.
A 9-V battery is hooked up to two resistors in series using wires of negligible resistance. One has a resistance of 5 Ω, and the other has a resistance of 10 Ω. Several locations along the circuit are marked with letters, as shown in the figure. Which statements about this circuit are true? (There could be more than one correct choice.)
The current is exactly the same at points A, B, C, and D.
The current at A is greater than the current at B, which is equal to the current at C, which is greater than the current at D.
The current at A is greater than the current at B, which is greater than the current at C, which is greater than the current at D.
The potential at B is equal to the potential at C.
The potential at D is equal to the potential at C.
In a series circuit....
Voltage is same and current is divided
Current is same and voltage is divided
Current and voltage both are different
None of these
in a series circuit the formula for calculating the equivalent resistance is
Req = R1 + R2 + R3....
Req = R11 + R21 + R31 +...
Req1 = R11 + R21 + R31 +..
Hmmm... dont know...
in a parallel circuit the formula for calculating the equivalent resistance is
Req = R1 + R2 + R3....
Req = R11 + R21 + R31 +...
Req1 = R11 + R21 + R31 +..
Hmmm... I already said... dont know...
Calculate the current flowing through the 6 ohm resistor if the current flowing in the series part of the circuit is 3A.
Note: R1 = 3 ohms and R2 = 6 ohms
3 A
2 A
1 A
1.5 A
Calculate the Total Resistance of the circuit if R1 = 3 ohms and R2 = 6 ohms
10 Ohms
8 Ohms
4 Ohms
2 Ohms
The main difference between a parallel and a circuit series is .
The current is decreased by a half in parallel circuits and is doubled in series circuits.
The voltage across the parallel circuit is the same across each branch yet in series the voltage is the sum of the voltages across each component.
Voltage is higher in series circuits compared to parallel.
Voltage is used up in series circuits compared to parallel circuits
If a resistor has a voltage of 10V across it and a current of 2A flowing through it, what is the resistance?
20Ω
5Ω
8Ω
12Ω
Calculate the current flowing through a circuit if the voltage across the circuit is 12V and the resistance is 6Ω .
1A
2A
18A
0.5A
Calculate the current flowing through a circuit if the voltage across the circuit is 12V and the resistance is 6Ω .
1A
2A
18A
0.5A
What is the voltage across a 4Ω resistor if a current of 3A is flowing through it?
7V
12V
1V
9V
In a series circuit with a total voltage of 30 V and two resistors of 10 ohms each, what is the current flowing through the circuit?
2 A
0.5 A
3 A
1.5 A
